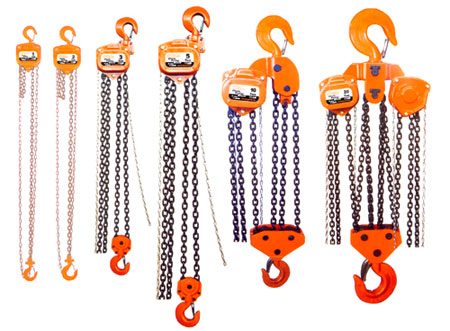

Chains pulley blocks

chains pulley blocks are designed & manufactured in accordance with IS 3832 & are available in Hook suspension type: push-pull trolley type hand geared trolley type. Load chain used is graded alloy steel chain & hand chain is m.s. calibrated to relevant I.S. standards.


Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components. Generally in accordance with IS 3938.

ARVIND CRANES uses sturdy cylindrical rotor pole-changing motors with elegant continuous cast aluminium sections, integrated safety brakes. Insulation class - F, Protection- IP54. Specifically designed for high starting torque hoisting service, half-hour rated with permanently lubricated bearings suitable for frequent reversals as well as braking.

Precision flat helical/ spur gear units with case-hardened gears, high-grade surface treatment and permanent oil/grease lubrication. Newer designs are lighter in weight because of improved material strength & manufacturing techniques.

Single/ Dual-disc electromagnetic DC brakes featuring automatic braking on power failure.
Environmentally sound brake linings designed for approx. I million braking operations allow long maintenance intervals.

Modular design, covering a very wide operating range. The panels are designed for ease of installation, maintenance and reliable operation, with, fuseless circuitry. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading. Control circuit provides reduced voltage at the Push Button station, with 110 volts being standard. Also, a relay to prevent phase failure and phase sequence change at the incoming. Modular soft starts for cross and long travel motors, ensures, operation is much more gentle on components, lowering shock loads and heat buildup.

Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel/automotive paint after testing.

The trolley types are the result of integrating standard hoists in chassis designed for different applications and combining them with various types of travelling gear.
In addition articulated joints ensure that all four wheels are always firmly positioned on the tracks and that the wheel loads are properly distributed in accordance with the structural design of the system.


* LIMIT SWITCHES (PROXIMITY) :To prevent over Hoisting & over lowering of hook. Positive action limit switch will prevent over travel beyond set limits in either direction.(Optional if desired for CT and LT.)

* PUSH BUTTON STATIONS: Extra light, handy, easy to operate, aluminium, fabricated from extruded section. Weather proof as standard, giving sure grip, one handed control, Station has built in steel strain relief, permits pulling of unloaded hoist along track.

  Crane Pulleys, Hooks and Accessories

We provide our clients with an extensive array of Crane Pulleys, Hooks and Accessories, Overhead Crane Hooks, Material Handling Hooks. These are fabricated using high grade raw material and are available in various shapes, sizes and dimensions. With the capacity range of 1 Tonne to 150 Tonnes, these custom built fitments are required for different material handling application.


  • Durable
  • Corrosion resistance
  • Optimum performance
  • Easy operation
