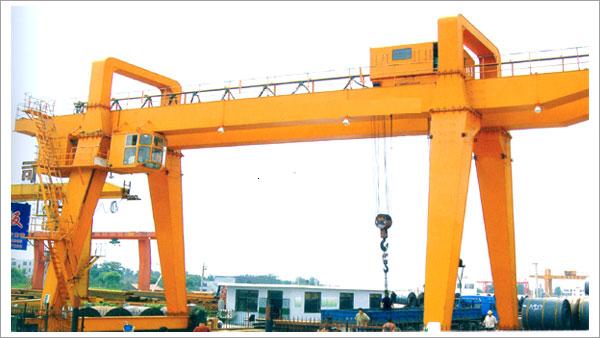

Gantry / Goliath Cranes are adapted to applications where overhead runways would be very long, costly to erect, and difficult to maintain in alignment. Where the installation is only temporary, a gantry crane can be moved to a new location with less trouble or expenses than an overhead crane and its runway. Also it is comparatively easy and inexpensive to extend the length of the runway and thus increase the working area of the crane. Most gantry crane installations are outdoors. The initial cost of a gantry crane, which may be double that of an overhead crane, must be equated against the additional cost of an overhead runway.


Standard Features of AHE Engineers' Goliath / Gantry Cranes -

  • Optimum design ensuring minimum Dead Weight, Wheel Loads, Head Rooms and Clearances, reducing building costs.
  • Forged runner wheels on Spherical Roller Bearings, resulting in long trouble free service.
  • Hobbed and Run-In Heat Treated Gears machined from High Carbon Steel / Alloy Steels to ensure smooth, silent and durable service.
  • Wide range of Heights of Lift, Hoisting, Cross & L

These type of cranes are widely found in the following applications:-

1. Ports
2. Container Handling
3. Construction sites
4. Marble / Granite Industry
5. Stockyards
6. Scrapyards
7. Railway yards
