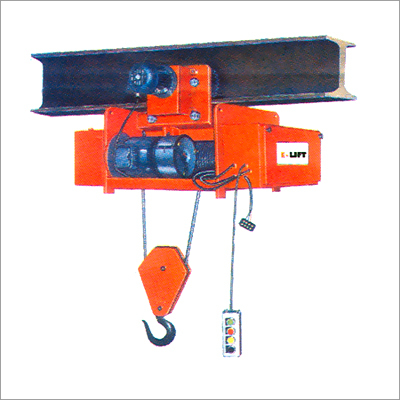

Electric Wire Rope Hoist

We are Manufacture of Electric Wire Rope Hoist that is available in several models. Our Hoist is developed using optimum quality raw material such as MS Sheets, MS angles, I beam, motors, brakes etc. These are hugely demanded in machine shop, engineering industry and foundry and can be customized as per the requirement of clients.









* HIGH EFFICIENCY:
1) These are designed for high speed operation to increase productivity.
2) Precision workmanship of all components minimises losses and increases efficiency.

* SHORT OPERATION:
1) Smooth operation is ensured by gears having precision machine cut teeth subjected to heat treatment.
2) Hoists are provided with antifrictional bearings on all high speed rotating parts.
3) Machined component parts are checked by limit gauges.

* EASE OF MAINTENANCE:
1) All parts of the Hoists requiring maintenance are made easily accessible.
2) Number of parts requiring frequent maintenance is kept minimum.
3) Wearing parts can be easily removed and replaced thus reducing down time.

* RIGID INSPECTION:
Stern inspection procedures at all stages of manufacture ensure unfailing dependability.

ADVANTAGES OF ELECTRIC WIRE ROPE HOIST:

* DESIGN:
Hoists are designed for all classes of application as per IS-3938. Standard Design is for Class II.


* MODULAR CONSTRUCTION:
Hoist is assembled from different independent units viz. Hoisting Gear Box, Hoisting Motor with brake, Rope Drum, Electric Control Panel and Travelling Trolley. All these units are separately accessible and promptly disassembled to simplify repairs, reduce maintenance cost and downtime.


* MAIN FRAME:
M.S. Plates are fastened with number studs to withstand the load of the different independent units attached to it.


* WIRE ROPE:
Hoisting rope comply with the Indian standards. The leading rope taken by the Drum, does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.


* ROPE DRUM:
Grooved Drum, Seamless Pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimise abrasive wear is provided. Drum Shaft revolves on Ball Bearings for ensuring smooth running.


* ROPE GUIDE:
Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.


* MOTOR:
Hoist Motor is an HTSC parallel rotor machine. Specially rated for Hoist duty, with minimum 40% CDF Rating and class B insulation. The unit is an IP 54 dust and damp proof enclosure, flange-mounted to the main frame of the Hoist. When creep speeds are required same is achieved by way of DC Clutch and Pony-Motor.


* GEAR BOX:
Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on bailor roller bearings, to ensure smooth, low-friction operation, the gear trains are greese lubricated. Also oil immersed Gear Box can be provided on request.


* BRAKE:
Electromagnetic Fail-safe type brake mounted externally on the rear end of the Hoisting Motor ensuring easily accessibility.


* HOOK BLOCK:
The Hook Block is tested to 150% of full load before assembly. The rope sheaves are fully guarded with protective steel castings. All sheaves rotate on Ball Bearings.


* TROLLEY:
It consists of M.S. Plates forming side frame assembled with Runner-Wheels. Runner Wheels are mounted on Double sealed Ball Bearings. Trolley is adjustable for various I Beam sizes.


* LIMIT SWITCHES:
A Limit Switch is built in as one of many safety features preventing accidental over-hoisting and over lowering of the hook block. The trip positions are adjustable to allow correct setting for installation.


* ELECTRIC CONTROL PANEL:
Controls are mechanically and electrically interlocked to prevent inadvertent operation of opposite motions and are all housed in an IP 54 dust and damp proof enclosure. A low voltage control system of 110 Volts. Minimises electrical hazards for the operator.

  Manual Chain Hoists
Manual Chain Hoists manual chain hoists without trolley

- compact steel housing
- two pawls ensure high safety factor
- zinc plated high quality RUD load chain acc. to EN 818-7-T
- zinc plated hand chain acc. to DIN 766
- German Certificate of Origin
